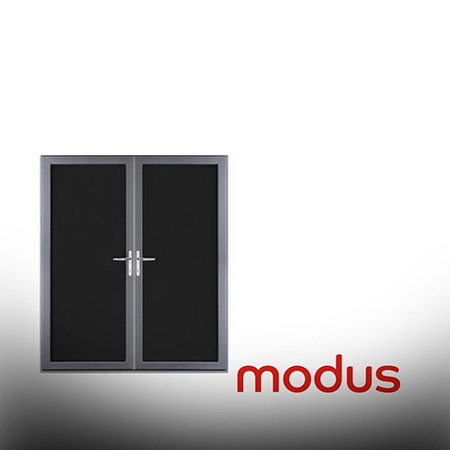

Modus 75mm French Doors
Eurocell
Modus French Doors provide a coordinated 75mm PVC-U doorset solution for access to patios, balconies and Juliet balconies.
Available in inward- or outward-opening configurations, the system combines thermal performance, secure hardware integration and flexible threshold options with the appearance and sustainability credentials of the wider Modus range.
Features and benefits
• 75mm PVC-U profile system
• Double-leaf French door configuration
• Inward- or outward-opening options
• Accommodates 28mm double- and 44mm triple-glazed units
• U-values down to 1.4 W/m²K with double glazing and 0.8 W/m²K with triple glazing, depending on configuration
• Standard or low PVC-U threshold options
• Part M-compliant solution available with aluminium ramps
• Fanlight and sidelight options
• Tested complete doorset configurations certified to PAS 24:2022+A1:2024
• PAS 24 certification covers the complete tested doorset, including profile, hardware, glazing or infill and other specified components
• Up to 50% recycled PVC-U using Dual Material Extrusion Technology
• Lower-carbon NeoVyn resin used across the Modus profile range
• Recyclable through Eurocell’s closed-loop recycling system
• Manufactured in the UK
• 12-year profile guarantee
Applications
Suitable for:
• Residential patios
• Balconies and Juliet balconies
• New-build housing
• Residential refurbishment
• Commercial developments
• Projects requiring coordinated Modus windows and doors
• Accessible entrance and threshold strategies
Sizes and configuration
• Overall width: 1200–2000mm
• Overall height: 1800–2300mm
• Inward- and outward-opening configurations
• Options include fanlights, sidelights, transoms and mullions
• Available with ventilators, cills, extensions, weathering trims and Cavalok cavity closers
• Performance and maximum sizes depend on the complete doorset configuration
• Hardware, glazing, reinforcement and threshold details must correspond with the tested or approved specification
Materials, colours and finishes
• Material: PVC-U
• Configuration: double-leaf French doors
• Glazing: 28mm double or 44mm triple glazing
• Finishes include smooth, foiled and woodgrain options
• Internal and external colour combinations are available, subject to the current Modus colour specification
Classification
• Uniclass: Pr_30_59_24_92 – Unplasticized polyvinyl chloride (PVC-U) doorsets
• CAWS: L20/480 and L20/55 – Doorsets
