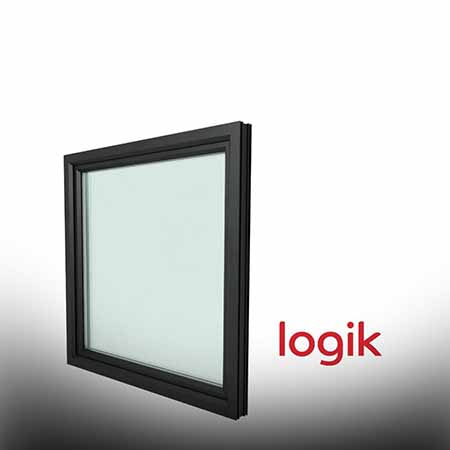

Logik 70mm PVC-U Tilt and Turn Windows
Eurocell
Logik Tilt and Turn is a versatile 70mm PVC-U window system offering two inward-opening functions.
Tilt mode opens the top of the window inwards to provide secure, controlled ventilation. Turn mode enables the sash to open fully inwards for increased airflow, access and convenient cleaning from inside the building.
Large areas of unobstructed glazing help maximise sightlines and natural daylight, while the compartmented profile design supports effective drainage and thermal efficiency.
Features and benefits
• 70mm multi-chambered PVC-U profile system
• Dual-action inward-opening operation
• Tilt mode for secure, controlled ventilation
• Turn mode for increased airflow, access and internal cleaning
• Inward-opening sash enables safer cleaning from inside
• Chamfered or sculptured ovolo profile options
• Large areas of unobstructed glazing for improved sightlines and natural light
• Accommodates 28mm and 36mm double- or triple-glazed units
• Best whole-window U-value of 1.0 W/m²K, depending on glazing and configuration
• Window Energy Rating up to A+, depending on glazing and configuration
• Compartmented profile design for effective drainage and thermal efficiency
• Multi-point locking system
• PAS 24 and Secured by Design compliant configurations
• Third-party certification under Kitemarks KM 32821 and KM 52187
• Can support appropriate window designs for Building Regulations Parts B, F, K and O
• Reinforcement options include recycled thermal inserts, steel and aluminium
• Finished windows contain up to 40% recycled PVC-U
• Manufactured in the UK by approved Eurocell fabricators
• Recyclable through Eurocell’s closed-loop recycling system
• Ten-year guarantee against warping, discolouration and cracking
• Available in an extensive choice of colours and finishes
Applications
Suitable for:
• Apartments and multi-storey housing
• Medium- and high-rise buildings
• New-build residential developments
• Residential refurbishment
• Replacement-window projects
• Commercial buildings
• Public-sector developments
• Projects requiring controlled ventilation
• Locations where windows need to be cleaned from inside
Appropriately designed configurations can support emergency-escape and ventilation strategies. Compliance depends on the complete window configuration, opening dimensions, glazing, hardware and project requirements.
Sizes and configuration
• Width: 550–1500mm
• Height: 550–1500mm
• Dimensions exclude cills
• Other styles and combinations require Eurocell Technical approval
• Hardware, reinforcement and inserts must be selected according to the size, sash weight and configuration
Materials, colours and finishes
• Material: PVC-U
• Profiles: chamfered or sculptured ovolo
• Operation: manual, inward opening
• Finishes: smooth extruded, foiled, woodgrain and textured options
• Colour options include white, cream, anthracite grey, slate grey, black ash, Chartwell green, golden oak, Irish oak, rosewood and white ash
• Internal colour can match the external finish or be specified separately, subject to the selected option
Classification
• Uniclass: Pr_30_59_98_92 – Unplasticized polyvinyl chloride (PVC-U) window units
• CAWS: L10/3 and L10/350 – PVC-U windows
