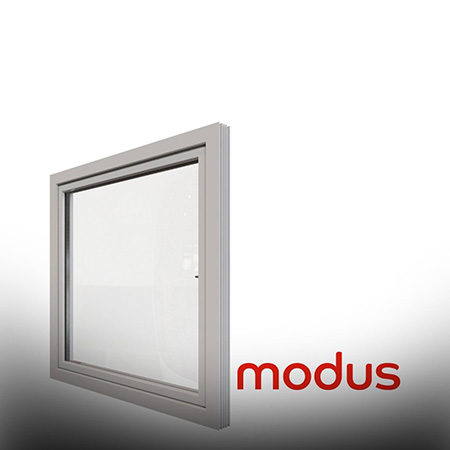

Modus 75mm Tilt and Turn Windows
Eurocell
Modus Tilt and Turn is a high-performance 75mm PVC-U window system offering two inward-opening functions.
Tilt mode opens the top of the window inwards to provide secure, controlled ventilation. Turn mode enables the sash to open fully inwards for increased airflow, access and convenient cleaning from inside the building.
The system combines flexible operation with excellent thermal, weather, acoustic, security and sustainability performance.
Features and benefits
• 75mm six-chamber PVC-U profile system
• Dual-action inward-opening operation
• Tilt mode for secure, controlled ventilation
• Turn mode for increased airflow, access and internal cleaning
• Inward-opening sash enables safer cleaning from inside
• Large glazed areas for improved sightlines and natural light
• Accommodates 28–44mm double- and triple-glazed units
• Best whole-window U-value of 0.78 W/m²K, depending on glazing and configuration
• Window Energy Rating up to A++
• Continuous co-extruded gasket for weather-tightness and acoustic insulation
•Multi-point locking system
• PAS 24 and Secured by Design compliant configurations
• Reinforcement selected according to size and configuration
• Up to 50% recycled PVC-U using Dual Material Extrusion Technology
• Lower-carbon NeoVyn resin used across the Modus profile range
• Recyclable through Eurocell’s closed-loop recycling system
• Manufactured in the UK
• 12-year profile guarantee
Applications
Suitable for:
• Apartments and multi-storey housing
• Medium- and high-rise developments
• New-build residential projects
• Residential refurbishment
• Commercial buildings
• Public-sector developments
• Projects requiring controlled ventilation
• Locations where windows need to be cleaned from inside
Appropriately designed configurations can support ventilation, safe cleaning and emergency-escape strategies. Compliance depends on the complete window configuration, dimensions, hardware, glazing and project requirements.
Sizes and configuration
• Width: 550–1500mm
• Height: 550–1500mm
• Other sizes and combinations require Eurocell Technical approval
• Reinforcement, inserts and hardware must be selected according to size, sash weight and configuration
Materials, colours and finishes
• Material: PVC-U
• Operation: manual, inward opening
• Finishes include smooth, foiled and woodgrain options
• Internal and external colour combinations are available, subject to the current Modus colour specification
Classification
• Uniclass: Pr_30_59_98_92 – Unplasticized polyvinyl chloride (PVC-U) window units
• CAWS: L10/3 and L10/350 – PVC-U windows
