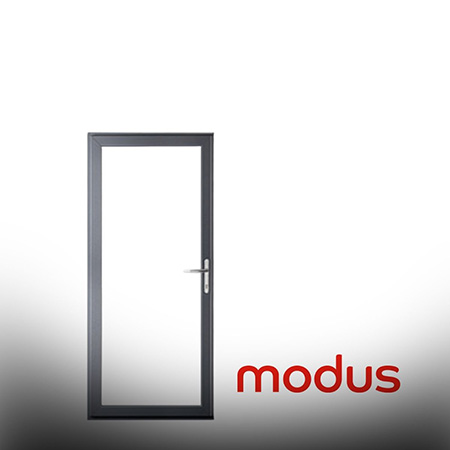

Modus 75mm Residential Doors
Eurocell
Modus Residential Doors provide a flexible 75mm PVC-U entrance-doorset solution for new-build and refurbishment projects.
Available in inward- or outward-opening configurations, the system combines secure hardware integration, excellent thermal performance and accessible threshold options with a coordinated appearance across the Modus window and door range.
Features and benefits
• 75mm PVC-U profile system
• Single-leaf residential entrance door
• Inward- or outward-opening configurations
• Internally glazed as standard
• Accommodates 28mm double- and 44mm triple-glazed units
• U-values down to 1.3 W/m²K with double glazing and 0.8 W/m²K with triple glazing, depending on configuration
• Standard or low PVC-U threshold options
• Part M-compliant solution available with aluminium ramps
• Fanlight and sidelight options
• Tested complete doorset configurations certified to PAS 24:2022+A1:2024
• PAS 24 certification covers the complete tested doorset, including profile, hardware, glazing or infill and other specified components
• Up to 50% recycled PVC-U using Dual Material Extrusion Technology
• Lower-carbon NeoVyn resin used across the Modus profile range
• Recyclable through Eurocell’s closed-loop recycling system
• Manufactured in the UK
• 12-year profile guarantee
Applications
Suitable for:
• Residential entrance doors
• New-build housing
• Residential refurbishment
• Replacement-door projects
• Accessible entrance strategies
• Projects requiring coordinated Modus windows and doors
Sizes and configuration
• Door width: 800–1050mm
• Overall height: 1800–2300mm
• Single-leaf inward- or outward-opening configurations
• Available with fanlights and sidelight frames
• Options include transoms, mullions, decorative glazing and ventilators
• Available with cills, extensions, weathering trims and Cavalok cavity closers
• Performance and maximum sizes depend on the complete doorset configuration
• Hardware, glazing, reinforcement and threshold details must correspond with the tested or approved specification
Materials, colours and finishes
• Material: PVC-U
• Configuration: single-leaf residential entrance door
• Glazing: 28mm double or 44mm triple glazing
• Internally glazed as standard
• Finishes include smooth, foiled and woodgrain options
• Internal and external colour combinations are available, subject to the current Modus colour specification
Classification
• Uniclass: Pr_30_59_24_92 – Unplasticized polyvinyl chloride (PVC-U) doorsets
• CAWS: L20/480 and L20/55 – Doorsets
